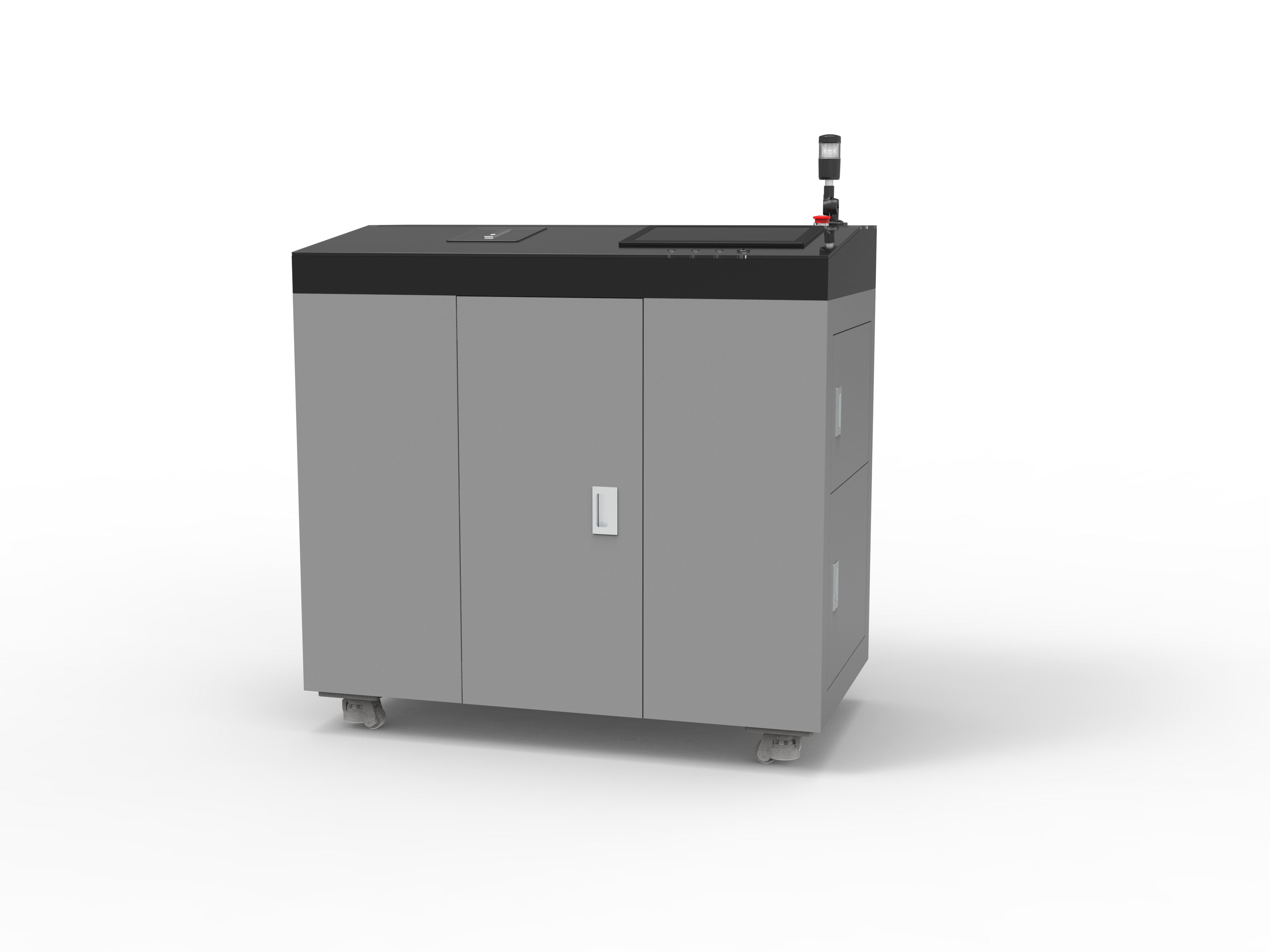

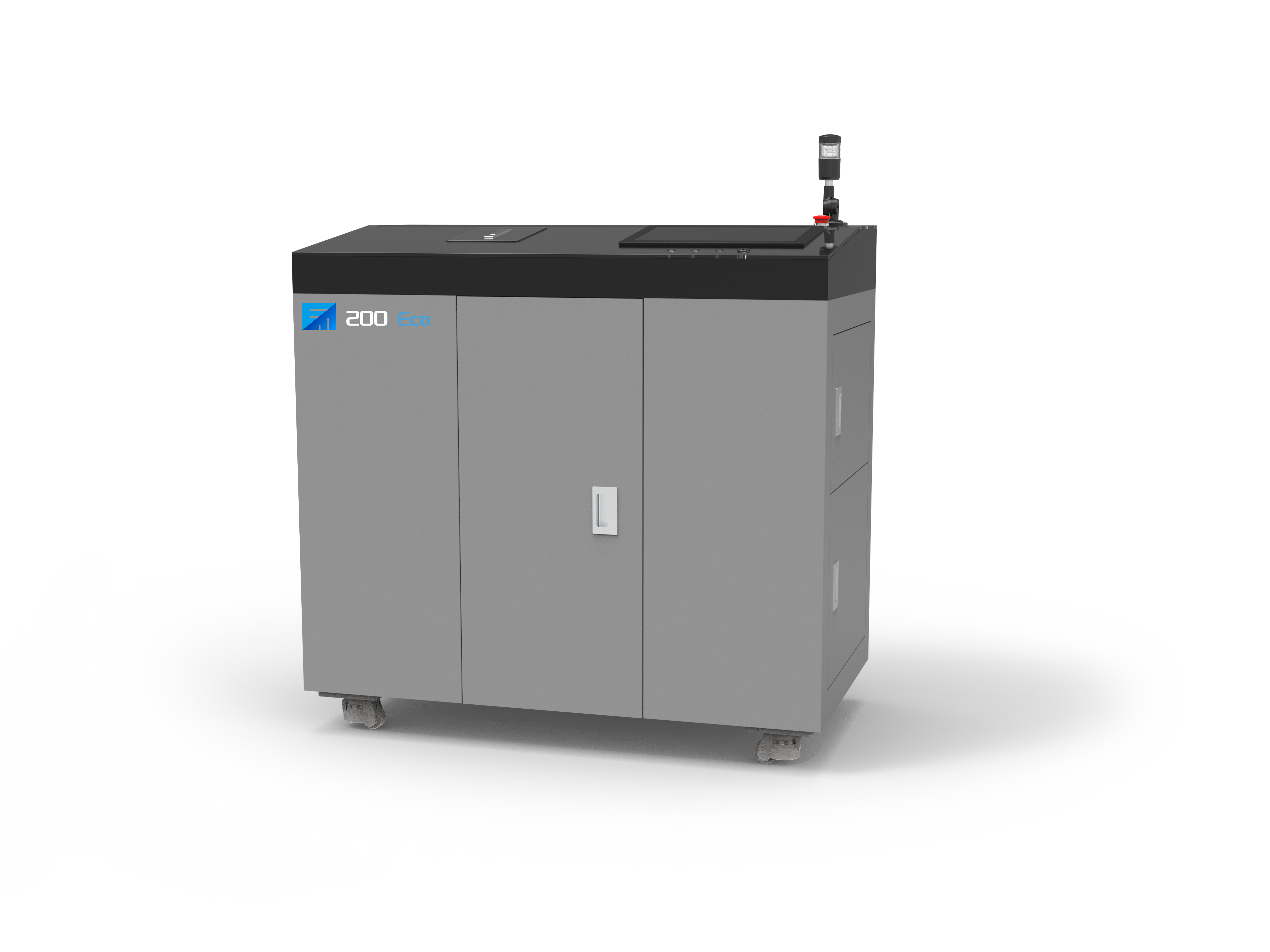

M200Eco
●Build Box Size: L200 x W140 x H100 mm
●Build Volume: 2.8 liters
●Maximum Printing Speed: 389 cc/hour
●Layer Thickness: Adjustable from 30-100 µm
M200Eco emphasizes excellent energy efficiency and is suitable for rapid production of small parts, making it an essential partner for the MIM industry. It is also the most reasonable choice for small to medium-sized business owners entering the MBJ industry, balancing the portability of the Inno series and the high precision of the Pro series.
|
Specification |
Details |
|
Model |
M200 Eco |
|
Build Space (mm) |
L200 * W140 * H100 mm |
|
Dimensions (mm) |
L1162 * W630 * H1120 mm |
|
Part Accuracy |
± 0.05 mm |
|
Printing Speed |
8-14 seconds/layer |
|
Layer Thickness (mm) |
Adjustable from 0.03 to 0.1 mm |
|
Powder Feeding Method |
Sieving and compacting top powder feeding, compatible with various powder morphologies |
|
Printing Method |
One-pass printing with simultaneous powder recoating and printing for high efficiency |
|
Build Box Fixing Method |
Negative pressure, replaceable build cylinder |
|
Number of Printheads |
Piezoelectric printheads, printhead width equals the width of the build cylinder |
|
Resolution |
Printhead NPI: 600; Printing resolution: 1200 |
|
Software Supported Formats |
STL, 3MF |
