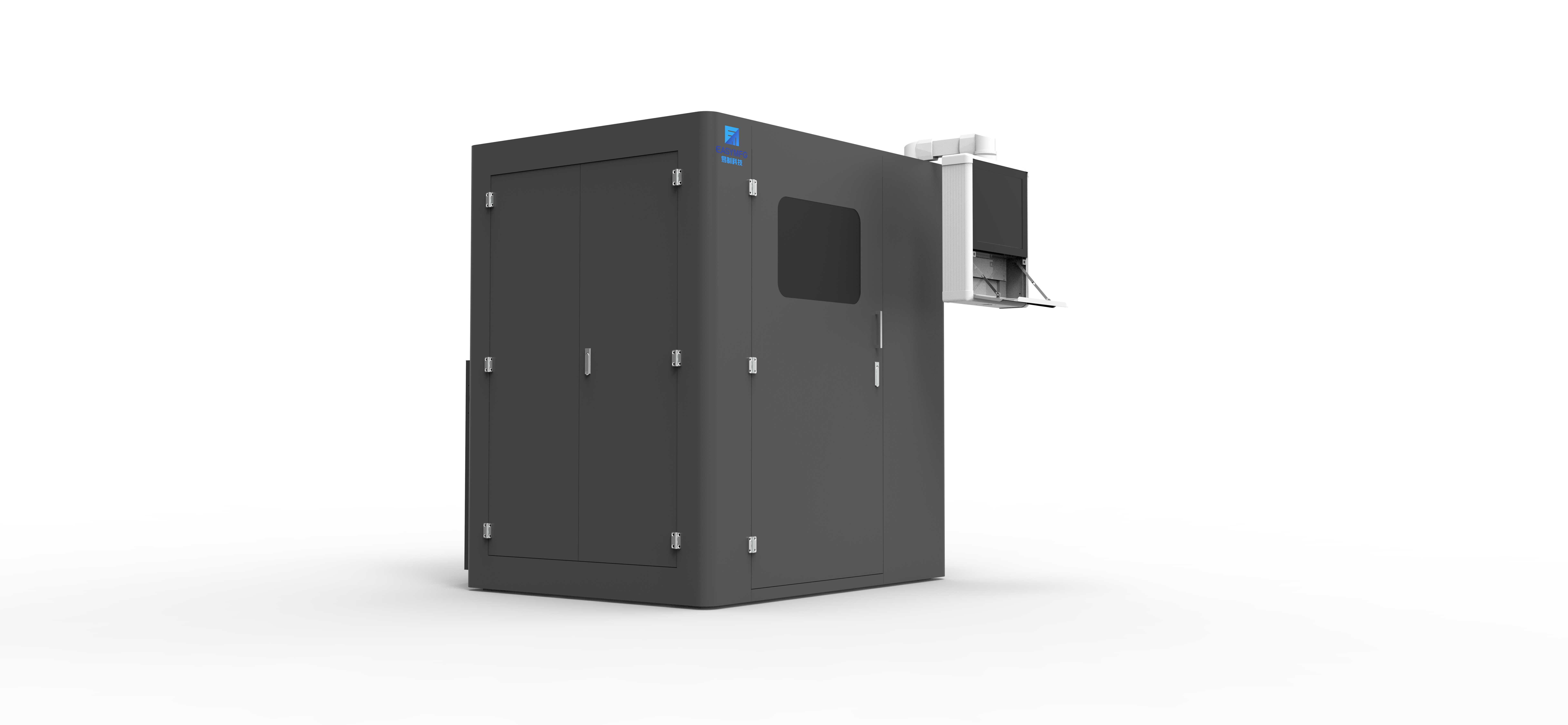

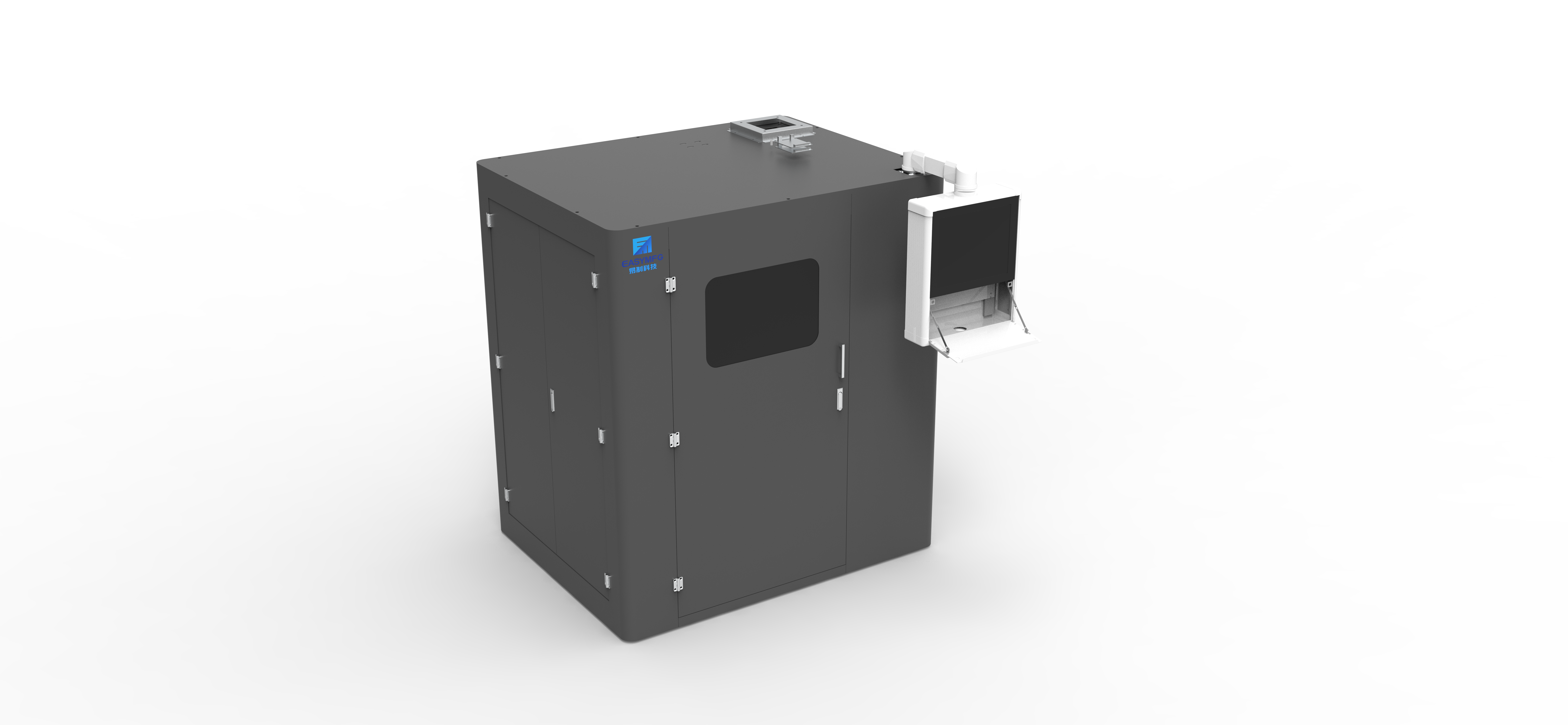

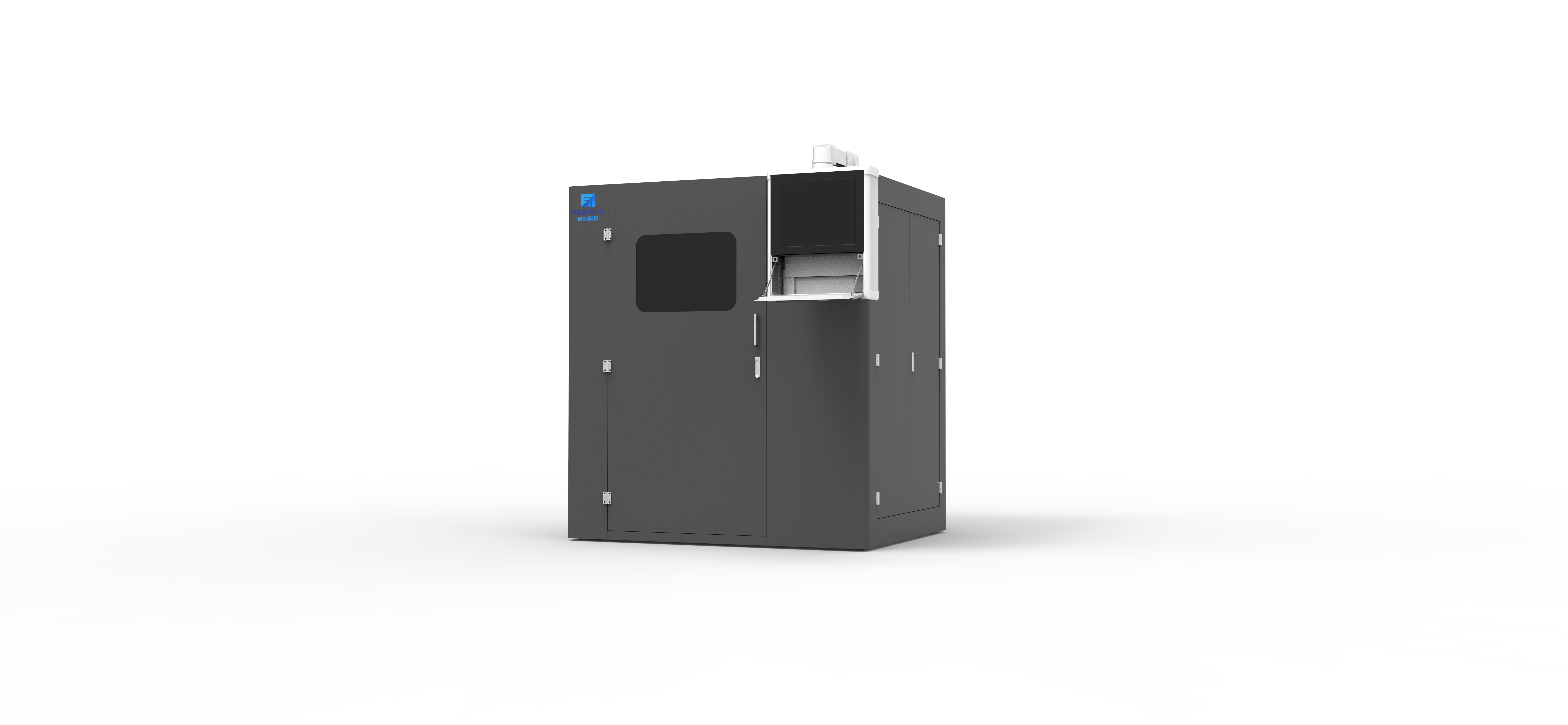

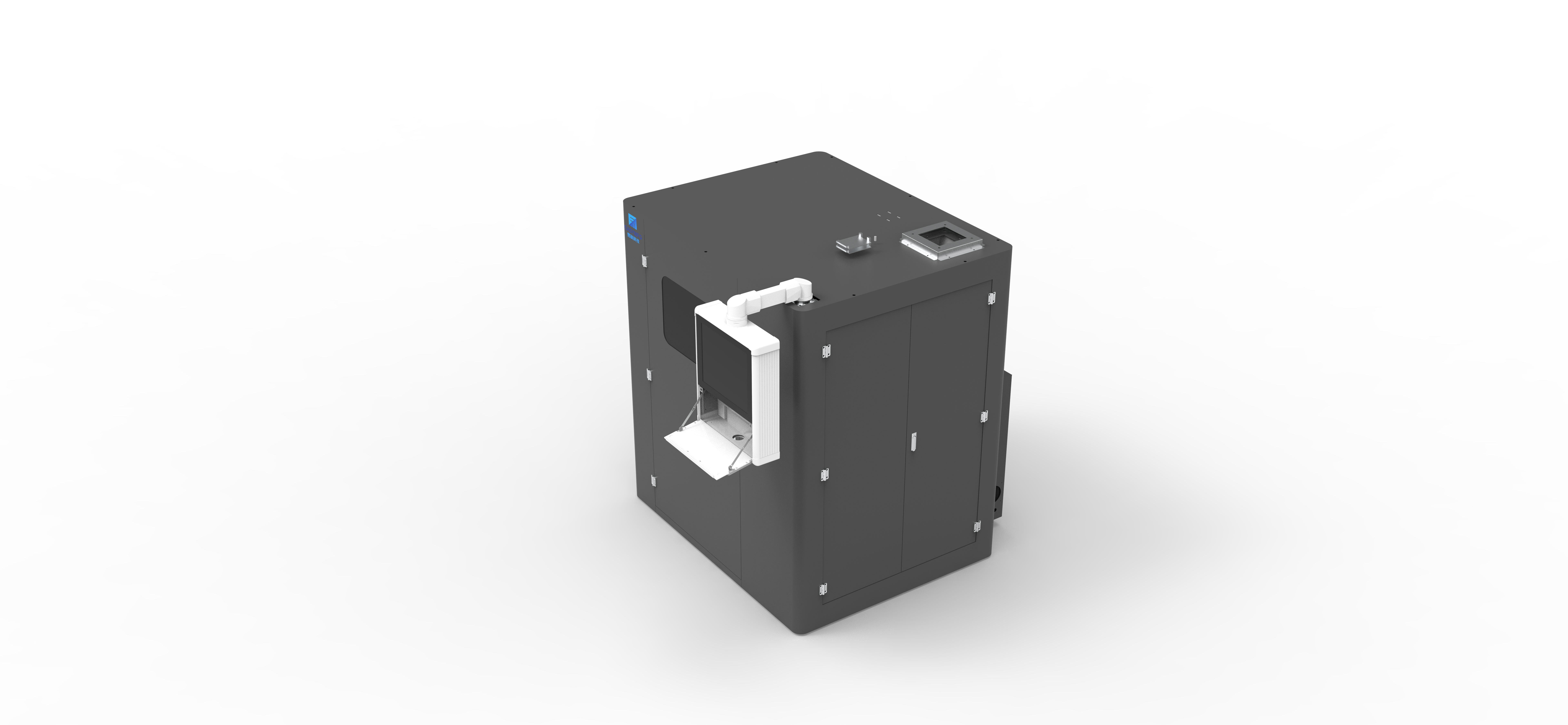

S500Smart
◆ Build Chamber: L 500 × W 450 × H 400 mm (L 19.69 × W17.72 × H 15.75 in)
◆ Build Volume: 90 l
◆ Max Build Rate: up to 14.9 l/h
◆ Layer height: Adjustable from 0.2 – 0.5 mm
S500Smart: Elevate Your Entry into Production with Precision and Ease Transform Ideas into Reality:
Step into the future of 3D printing with the S500Smart – an entry-level machine that effortlessly combines precision, efficiency, and ease of use. Elevate your production game and turn your ideas into reality with this innovative binder jetting sand 3D printer.
|
TECHNICAL SPECIFICATIONS |
|
|
Equipment Model |
S500Smart |
|
Build Box(mm) |
500x450x400 |
|
Precision |
±0.2mm（L＜200mm）or ±0.1%（L >200mm） |
|
Tensile Strength |
1-3Mpa |
|
Surface roughness |
Be superior to Ra12.5 |
|
Gas Evolution Rate |
12-20ml/g（850°C） |
|
Printing Speed |
10-30s/per layer |
|
Layer Height(mm) |
0.2-0.5 (Can be adjustable) |
|
Printheads |
One piezoelectric printheads (expandable to 3pcs) |
|
Specification for printheads |
Length=72mm; resolution: 360DPI |
|
File format |
STL、3MF |
|
Electrical Requirements |
Single phase, 220V, 10A, 50HZ |
|
Powder types |
Silica sand, quartz sand, coated sand, etc. |
System benefits:
◆ The print head is not easy to clog, auto clean function
◆ Waterfall type powder feeder can be compatible with multiple sands
◆ Real time slicing and RIP algorithms for layered manufacturing. Can adjust the technological parameter freely
◆ Independent intellectual property rights, self-developed software
◆ Achieve precise control over the binder dosage through fine-tuning capabilities.
◆ Integrate the curing agent into the sand seamlessly during operation for enhanced efficiency.
