M150lnno
◆ Build Chamber:L150 xW70 xH70 mm(L5.91 xW2.76 x H2.76 inch)
◆ Build volume: 0.735 Liters
◆ Max build rate:189cc/hour
◆ Layer Height: Adjustable from 40-200μm

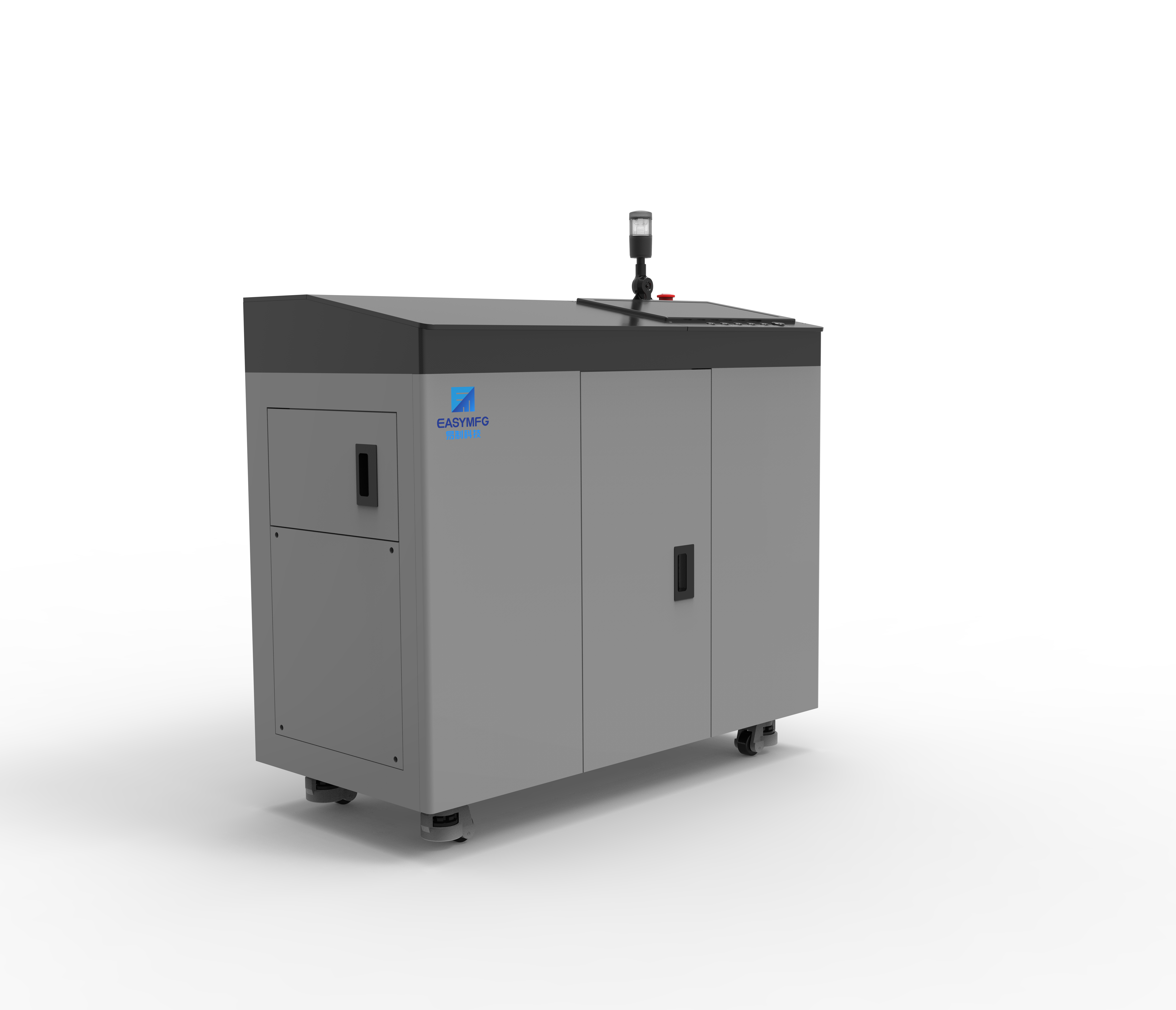

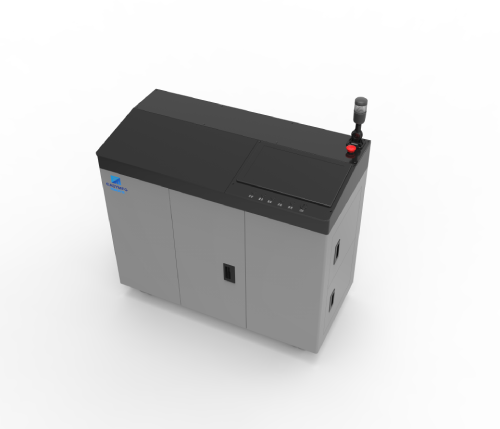

EASYMFG M150Inno Metal Binder Jetting 3D Printer
Research-Focused Design
Compact Design, Big Possibilities
The M150Inno is not just a 3D printer; it's a catalyst for exploration and innovation. Compact, stylish, and powerful, it's the ideal tool for research institutes seeking precision in a small form factor.
EASYMFG M150Inno - where research meets creativity.
|
Model |
M150 Inno |
|
Build Volume (mm) |
L150 * W70 * H70 |
|
Outer dimension(mm) |
L1035 * W490 * H900 mm |
|
Part Accuracy |
±0.05mm |
|
Print Speed |
8-15S/layer |
|
Layer Thickness (mm) |
0.03-0.1 adjustable |
|
Powder Delivery |
Sieve, compaction, compatible with various powder morphologies |
|
Printing Mode |
One-pass printing, high efficiency |
|
Build Chamber Fixation |
Replaceable build chamber |
|
Number of Printheads |
Piezoelectric printhead, width equals build chamber width |
|
Resolution |
Printhead NPI: 600; Print Resolution: 1200 |
|
Software Support |
STL, 3MF |
|
Power Requirement |
Single-phase, 220V, 10A, 50HZ |
|
Materials |
Titanium alloy, iron-based powder, copper powder, stainless steel powder, etc. |
◆ Compact Design, Easy Operation: The device features a compact internal design with a build box size of 150mm×70mm×70mm, minimizing its spatial footprint. The straightforward build box extraction allows users to effortlessly clean the powder with a simple one-handed removal, making it ideal for placement in laboratories, production workshops, and similar environments.
◆ Flexible Material Replacement: The equipment supports the flexible replacement of various metal powders. The powder spreading system incorporates three functions: sieving, leveling, and compacting, adapting to powders with poor flowability and low sphericity. A dedicated powder cleaning and recycling system enables quick changes between different types of metal powders, reducing residual powder within the machine.
◆ High Precision and Speed: Utilizing a long-life, high-resolution piezoelectric printhead and precision ball screw guide, the physical resolution of the piezoelectric printhead is 600NPI, achieving a production-grade product accuracy of 1200DPI with a single reciprocation. Additionally, the device features a fast printing speed, requiring only 8 seconds per layer due to its structure similar to production-grade MBJ devices.
◆ High Automation: The device is user-friendly with an intuitive control panel, allowing for easy operation. It operates fully automatically, enabling users to quickly grasp the device's usage methods and operate it with ease.
